Intrinsically safe electronic indication devices for reliable safety monitoring.

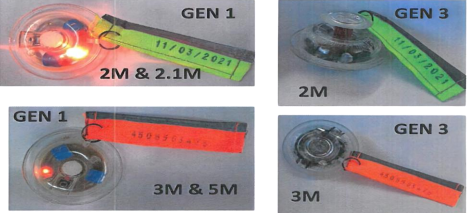

GEN 1 Product Specifications
2m Electronic Tell Tale Yellow Reflective tag
2.1m Electronic Tell Tale Yellow Reflective tag
3m Electronic Tell Tale Orange Reflective tag
5m Electronic Tell Tale Pink Reflective tag
0-3mm No electronic indication only manual indication (Red reflective sticker)
3-5mm 1 red flash every 2 seconds
INTRINSICALLY SAFE: M-XPL/13.0191 X
GEN 3 Product Specifications
2m Electronic Tell Tale Yellow Reflective tag
3m Electronic Tell Tale Orange Reflective tag
0-3mm No electronic indication only manual indication (Red reflective sticker)
3-5.9mm 1 red flash every 3-3.5 seconds
6mm upwards 2 red flashes every 3-3.5 seconds
Amber Led for low battery warning
Low battery system amber light will flash once every 5 seconds
A fault will take preference over low battery system, if a fault occurs while the low battery system is activated the unit will switch over and flash red warning light till battery is depleted.
Then only the amber light is flashing, follow your mine procedure for replacing the Tell Tale (or install an additional Tell Tale)
In the event of no flash after 10 sec/10 counts report to supervisor and do not install the product
